Viewer "Epson EB-FH52"
 in classroom 564

  • Projector Specifications:
    •     -White Brightness................4,000 ANSI Lumens
        -Color Brightness................4,000 Lumens
        -Resolution..........................1920x1080, Full HD 1080p,
        -Aspect Ratio.......................16:9
        -Contrast..............................16,000:1 (Full On/Off)
        -Video Modes......................720p, 1080i, 1080p/60, 576i,576p
        -Data Modes........................MAX 1920x1080
        -Lamp Type.........................230W, UHE
        -Lamp Life...........................5,500 hours  / 12,000 hours durability (Economy)
        -Lamp Model....................... ELPLP97
        -Included Lens......................1.6x manual zoom ,manual focus
        -Image Size..........................30 inches - 300 inches (0.76 m - 7.63 m)
        -Throw Distance...................1.76 m - 2.86 m
        -Throw Ratio........................1.32:1 - 2.14:1 (D :W)
        -Projector Placement............for a 254 cm diagonal screen, place the projector
                                                      lens between 2.9 m and 4.7 m from the screen
        -Digital Zoom.......................Yes
        -Projector Size...................9.0cm x 30.9cm x 28.2cm (Height x Width x Depth)
        -Weight.............................3.1 kg
        -Audible Noise.................37 dB  / 28 dB (Economy Mode)
        -Internal Speakers.............16.0 Watts Mono
        -Power .............................327 Watts, 100V - 240V, 50 Hz - 60 Hz
        -Features............................Picture-in-Picture, Geometric Correction

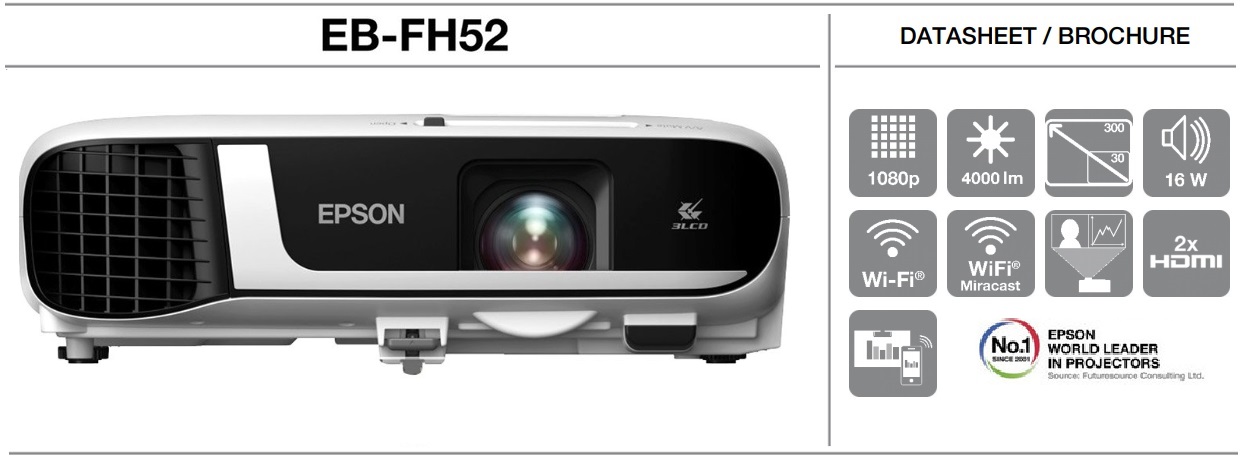

  • Product Sheet (Eng)
  • User Manual (Eng)

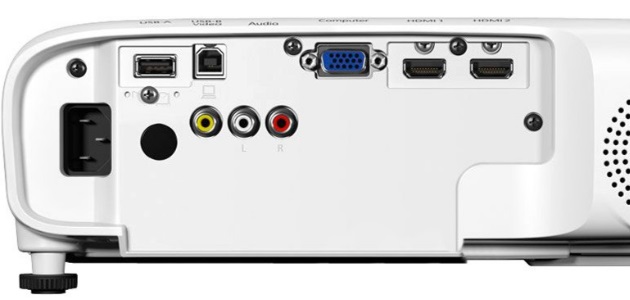

    • Connection Panel:

    USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
    USB Type B: 1 (For Firmware Update , Copy OSD Settings)Network:Wireless: Built-In

    Analog Input: Composite: 1 RCA
    D-Sub 15pin: 1
     Digital Input: HDMI: 2
     Audio Input: 2RCA (White & Red): 1
