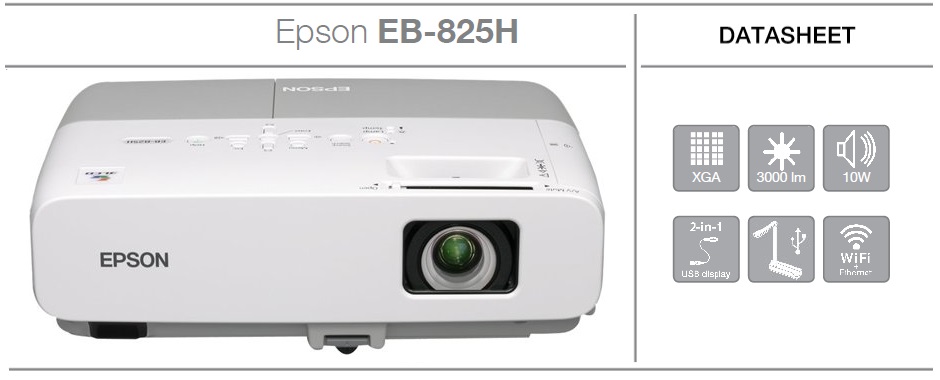

Viewer"Epson EB-825H"
 in classroom 576

  • Projector Specifications:
    •     -White Brightness................3,000 ANSI Lumens / 2.400 Lumens (Eco)
        -Color Brightness................3,000 Lumens CLO
        -Resolution..........................1024x768
        -Aspect Ratio.......................4:3 (XGA)
        -Contrast..............................2,000:1 (Full On/Off)
        -Video Modes......................720p, 1080i, 480p, 480i
        -Data Modes........................MAX 1600x1200
        -Lamp Type.........................200W UHE E-TORL bulb
        -Lamp Life...........................5,000 hours  / 6,000 hours (Eco)
        -Lamp Model.......................ELPLP50 / V13H010L50
        -Included Lens......................1.6x manual zoom ,manual focus
        -Image Size...........................76 cm - 203 cm
        -Throw Ratio........................1.38:1 - 2.24:1 (D :W)
        -Projector Placement............for a 254 cm diagonal screen, place the projector
                                                       lens between 2.8m and 4.6 m from the screen
        -Digital Zoom.......................~1.62
        -Digital Keystone..................Vertical only (-30 to +30 degrees )
        -Projector Size......................9.5cm x 32.7cm x 25cm (HxWxD)
        -Weight................................3.1 kg
        -Audible Noise.....................35 dB  / 28 dB (Eco)
        -Internal Speakers................10.0 Watts Mono
        -Power .................................275 Watts, 100V - 240V
        -Features...............................Soft Carrying Case
  • Product Sheet (Eng)
  • User Manual (Eng)        User Manual (Rus)

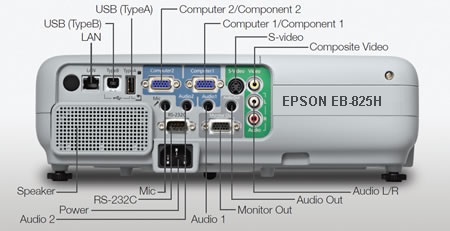

    • Connection Panel:

                                                    - Audio In: Mini Jack
                                                    - Audio In: RCA x 2
                                                    - Audio Out: Mini Jack
                                                    - Composite: RCA
                                                    - Network: RJ-45

                     - RS232: DB-9pin
                     - USB (TypeA + TypeB)
                     - VGA In: Dsub-15pin x 2
                     - VGA Out: Dsub-15pin
                     - Mic port
